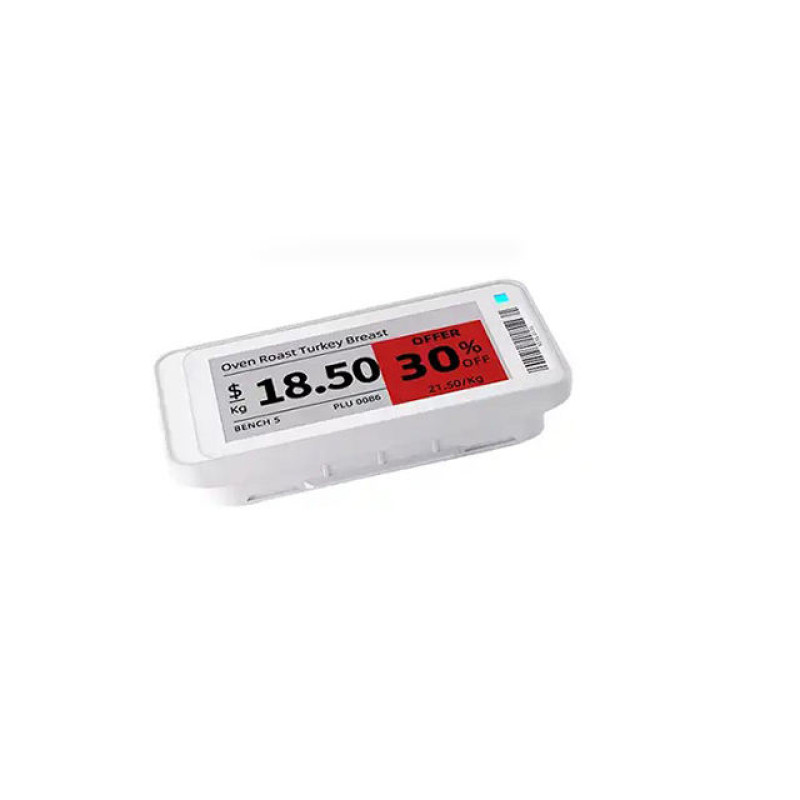

Factory Direct Sales BLE5.0 Technology Electronic Shelf Label 2.1-inch Intelligent Retail Label Electronic Ink Display Supermarket NFC Label 215 Chip

Factory Direct Sales BLE5.0 Technology Electronic Shelf Label 2.1-inch Intelligent Retail Label Electronic Ink Display Supermarket NFC Label 215 Chip

Factory Direct Sales BLE5.0 Technology Electronic Shelf Label 2.1-inch Intelligent Retail Label Electronic Ink Display Supermarket NFC Label 215 Chip
Factory Direct Sales BLE5.0 Technology Electronic Shelf Label 2.1-inch Intelligent Retail Label Electronic Ink Display Supermarket NFC Label 215 ChipFactory Direct Sales BLE5.0 Technology Electronic Shelf Label 2.1-inch Intelligent Retail Label Electronic Ink Display Supermarket NFC Label 215 ChipFactory Direct Sales BLE5.0 Technology Electronic Shelf Label 2.1-inch Intelligent Retail Label Electronic Ink Display Supermarket NFC Label 215 ChipFactory Direct Sales BLE5.0 Technology Electronic Shelf Label 2.1-inch Intelligent Retail Label Electronic Ink Display Supermarket NFC Label 215 Chip
CategoriesABS/PPS NFC Tags
BrandDC-NFC Tag Manufacturer
Model70*34.7MM PPS tags
categoryPPS tags
supportDC-NFC tag manufacturer

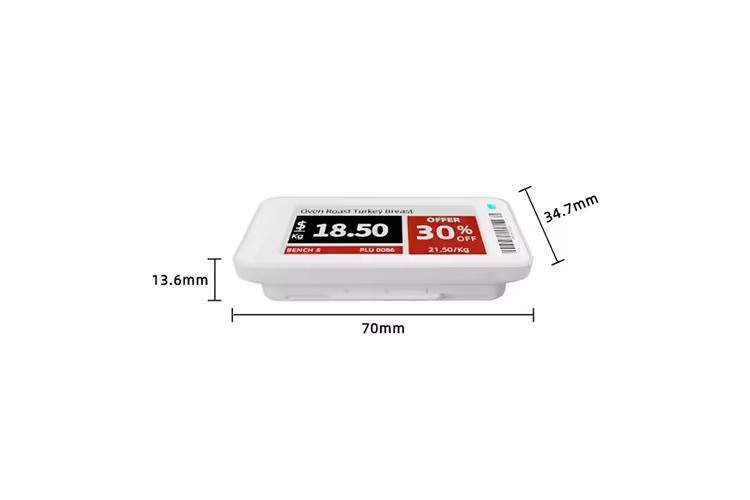

size70*34.7Mm
standard14443a
chipNTAG215
frequency13.56MHZ
operating temperatureMinus 30 to 85 degrees
reading distanceAbout 5-10cm
AuthenticationROSH ,REACH CE
FOB portShenzhen
Terms of PaymentT/T
Update TimeOct 9,2024
Detail Information
70*34.7MM PPS tags Description
 6Mm FPC NFC TAG
High Quality 70*34.7MM PPS tags


Application industry:Library management, factory automation NFC, laundry NFC/RFID tags, chip consumables and accessory identification



●characteristic:
 NTAG 215 chip, 70*34.7mm PPS tags, high-temperature resistant
NFC


70*34.7MM PPS tags Specification
Features
Contactless transmission of data and supply energy
Operating frequency
13.56 MHz
Data transfer
106 kbit/s
Data integrity
16-bit CRC, parity, bit coding, bit counting
7-byte serial number (cascade level 2 according to ISO/IEC 14443-3).UID ASCII mirror for automatic serialization of NDEF messages..Automatic NFC counter triggered at a reading command.NFC counter ASCII mirror for automatic adding the NFC counter value to the NDEF message.ECC-based originality signatureFast read commandTrue anti-collision
180, 540 or 924 bytes organized in 45, 135 or 231 pages with 4 bytes per page.
144, 504 or 888 bytes freely available user Read/Write area (36, 126 or 222 pages).
4 bytes initialized capability container with one-time programmable access bits.
Field programmable read-only locking function per page for the first 16 pages.
Field programmable read-only locking function above the first 16 pages per double page for NTAG 213 or per 16 pages for NTAG 215 and NTAG 216.
Configurable password protection with an optional limit of unsuccessful attempts.
Anti-tearing support for capability container (CC) and lock bits.
ECC supported originality check.
Data retention time of 10 years.
Write endurance 100,000 cycles.
70*34.7MM PPS tags Applications
10Mm NFC FPC Small Tag Application
70*34.7MM PPS tags FAQ
1. How can I get the 70*34.7MM PPS tags Description Small price?
Please Send your inquiry Details or add our online tool then we can provide you with a quotation for the first time.

2. Can you   offer free samples?
Yes, usually we can offer you free samples
A: For stock samples, we can send you free samples for your test, you pay for the shipping cost.
B: For customized samples, we will charge the reasonable production cost and try to refund you after order confirmed

3. What is your lead time?
Usually, our lead time is 1-7 days for samples and 7-20 days for mass production.

4.  What's your payment method  ?
Our payment method are T/T, Ali Trade Assurance for mass production order; Paypal.

5. How can I Choose the chip?
Check above chips lists or just email with us of the application, we will give the best suggestions.
